    • WTFCS96HC | 96" Four Drawer Chef Base Freezer

    Call Us: 888-845-9800

    Spec Sheet Manual Revit File Front File Plan File Side File
    Write a Review
    Model #:
    WTFCS96HC
    Exterior Dimensions WxDxH:
    96" x 34-3/4" x 24-3/8"
    Ext. Construction:
    Stainless steel front and sides
    Int. Construction:
    Corrosion resistant aluminum
    Compressor Location:
    Side mounted
    Drawers:
    4
    Pan Capacity:
    12 full
    Net Capacity:
    17.60 cu. ft.
    Type:
    Freezers

    Product Description

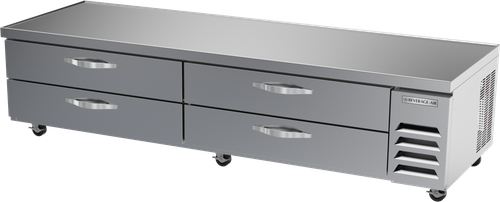

    WTFCS96HC | 96" Four Drawer Chef Base Freezer

    CABINET CONSTRUCTION

    • Stainless steel front, sides, drawers and grille (galvanized back & bottom)
    • Interior liner is made of corrosion resistant aluminum
    • Top has full marine edge to prevent spills from dripping over sides
    • Full electronic control
    • Top weight capacity 1500 lbs
    • One-piece, snap-in magnetic drawer gasket
    • 12-Gauge stainless steel drawer slides with Delrin® rollers rated at 275 lbs
    • Lifetime warranty on all drawers and slides
    • Heavy duty, fire-proof, insulated 16 gauge top
    • No heat shield required (must adhere to proper clearance per owners manual)
    • Accommodates 6” deep full size food service pans (not included)
    • Self-closing drawer feature
    • Compressor available on left or right, specify at time of unit order
    • 3” Casters, 2 with brakes standard

    REFRIGERATION SYSTEM

    • Uses environmentally friendly, energy efficient R290 refrigerant, and meets all regulatory requirements for CARB, SNAP, DOE & more
    • Adaptive defrost
    • Non-electric defrost with hot gas condensate evaporation
    • Freezer capable of maintaining product temperature of -10ºF
  • Stainless steel back
  • Stainless steel interior
  • Additional pan supports
  • 6” Adjustable legs, 6” seismic legs
  • 6” Casters
  • Gasket guards
  • Flat top overhang (up to 6” overhang on each side)
  • Remote option* (refrigerant must be specified at time of order)

    • Resources

    Spec Sheet Manual Video File Brochure Revit File Auto CAD Front File Auto CAD Plan File Auto CAD Side File

    7 year warranty on parts, labor, and compressor

    Warranty Statement File

    Custom Field

    Model # WTFCS96HC
    Exterior Dimensions WxDxH 96" x 34-3/4" x 24-3/8"
    Ext. Construction Stainless steel front and sides
    Int. Construction Corrosion resistant aluminum
    Compressor Location Side mounted
    Drawers 4
    Pan Capacity 12 full
    Net Capacity 17.60 cu. ft.
    Type Freezers
    Nominal Width 84 - 112 in
    Resource - PDF - Spec Sheet https://store-2tiw84ejdt.mybigcommerce.com/content/spec-sheets/Chef-Bases/WTFCS96HC.pdf
    Resource - PDF - Manual https://store-2tiw84ejdt.mybigcommerce.com/content/manuals/809-256A_MANUAL_INSTALLATION_AND_OPERATION_BEV_AIR_WTFCS_SIZES_48-96.pdf
    Resource - Video https://player.vimeo.com/video/1004220944?badge=0
    Resource - PDF - Brochure https://beverage-air.com/content/brochures/Chef-Bases.pdf
    Additional Information 7 year warranty on parts, labor, and compressor
    Resource - Warranty Statement https://store-2tiw84ejdt.mybigcommerce.com/content/warranty/Beverage-Air-Warranty-Statement.pdf
    Resource - Revit https://store-2tiw84ejdt.mybigcommerce.com/content/CAD-Revit/Chef-Bases/QF_Beverage-Air_WTFCS96HC.rfa
    Resource - Auto CAD - Front https://store-2tiw84ejdt.mybigcommerce.com/content/CAD-Revit/Chef-Bases/KCL-Beverage-Air-WTFCS96HC-VE.dwg
    Resource - Auto CAD - Plan https://store-2tiw84ejdt.mybigcommerce.com/content/CAD-Revit/Chef-Bases/KCL-Beverage-Air-WTFCS96HC-VP.dwg
    Resource - Auto CAD - Side https://store-2tiw84ejdt.mybigcommerce.com/content/CAD-Revit/Chef-Bases/KCL-Beverage-Air-WTFCS96HC-VS.dwg
