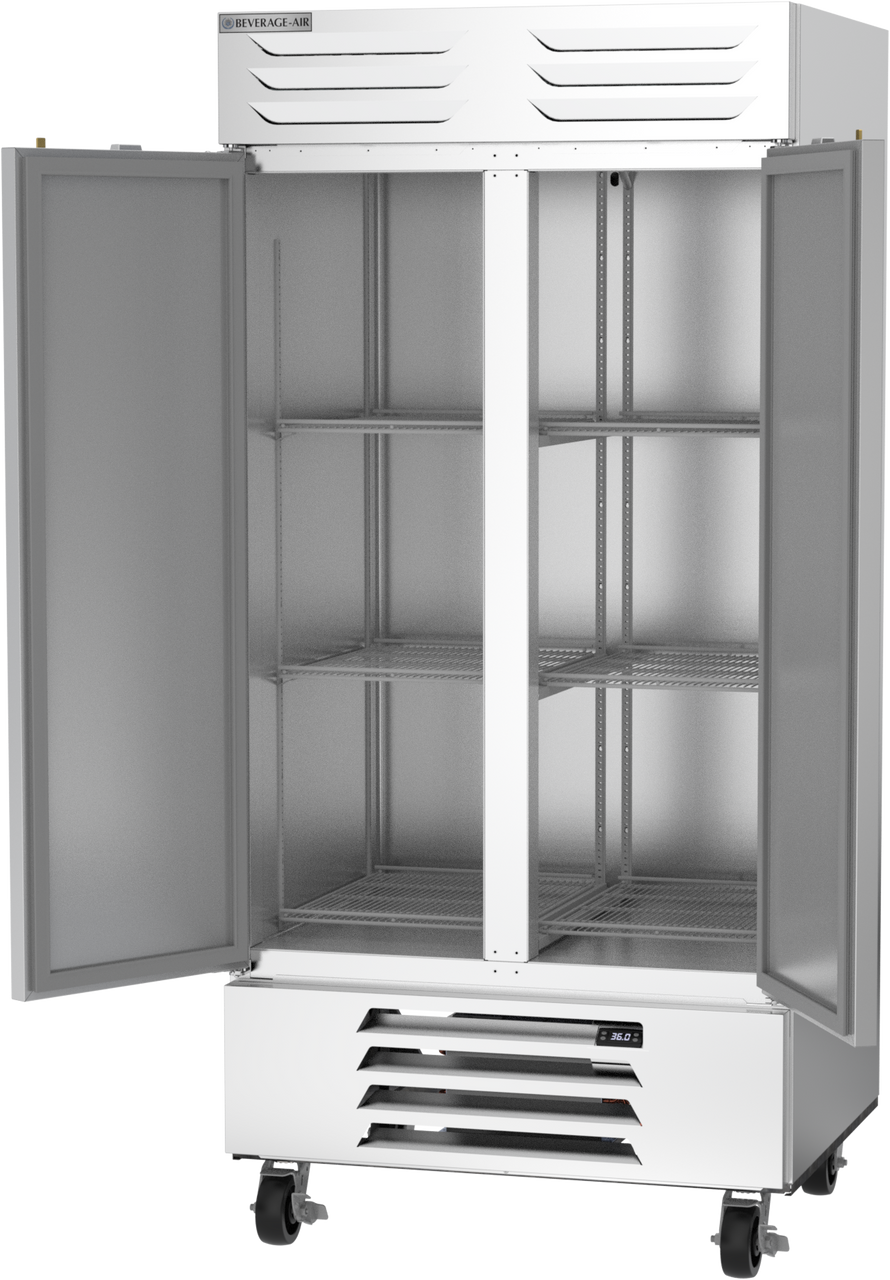

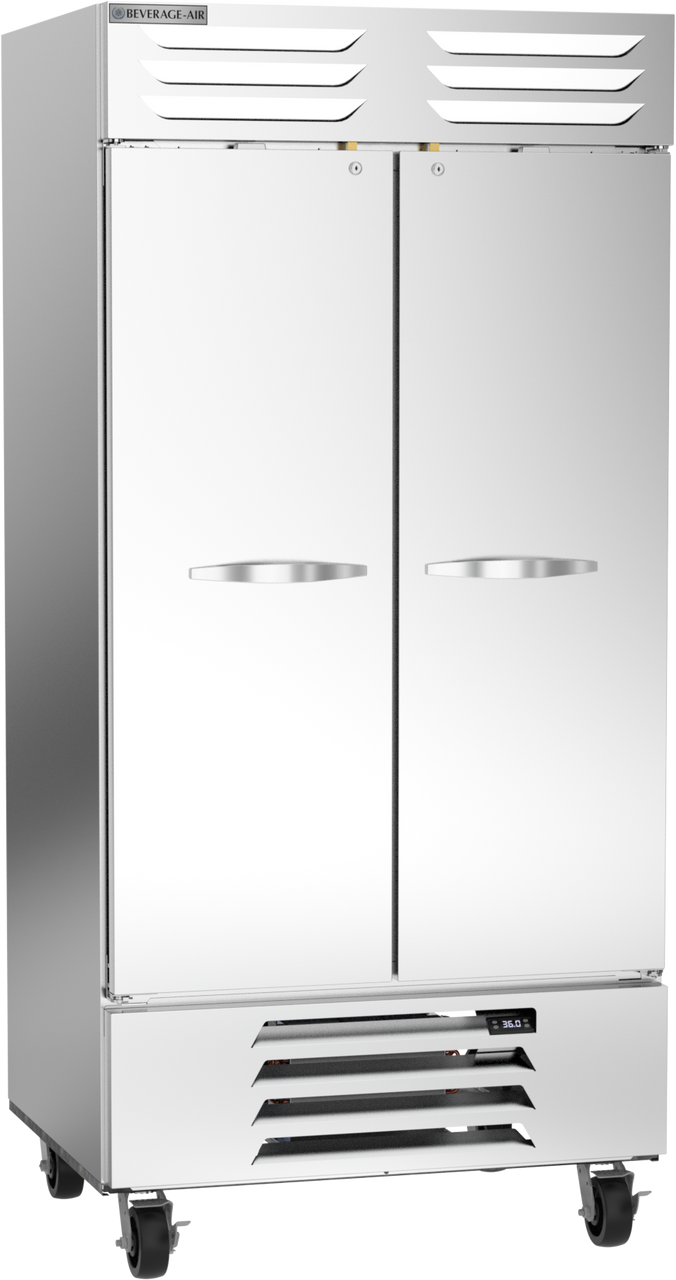

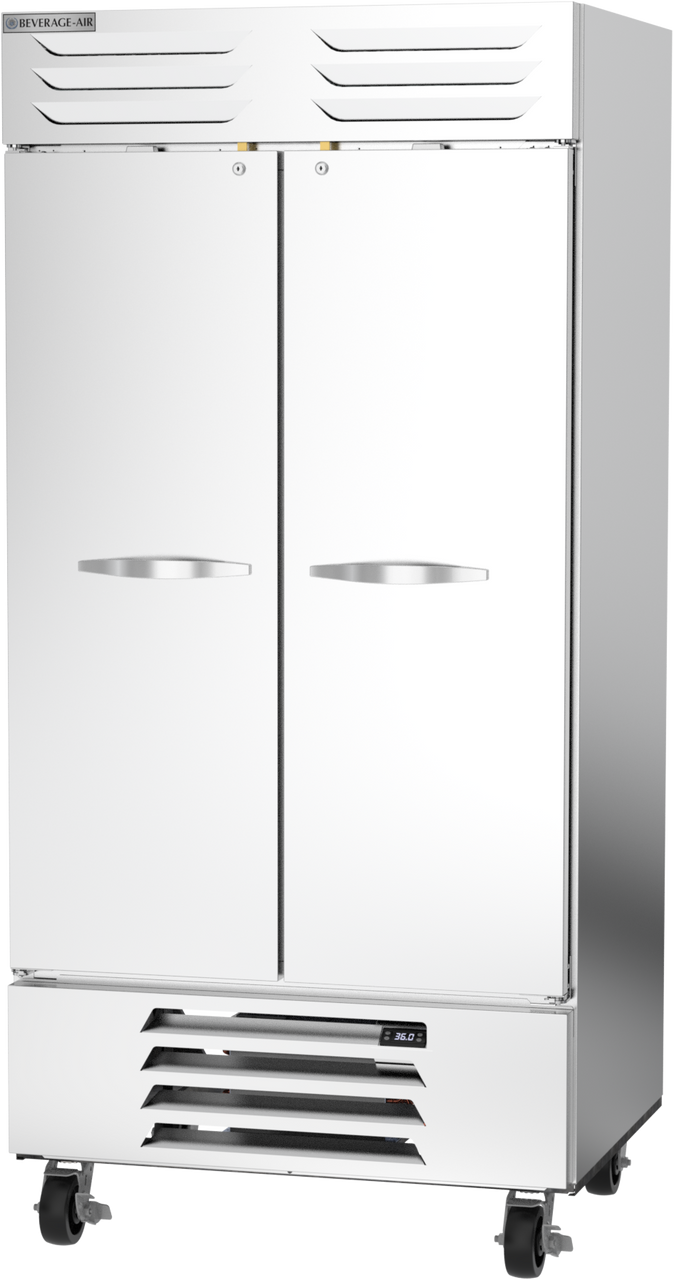

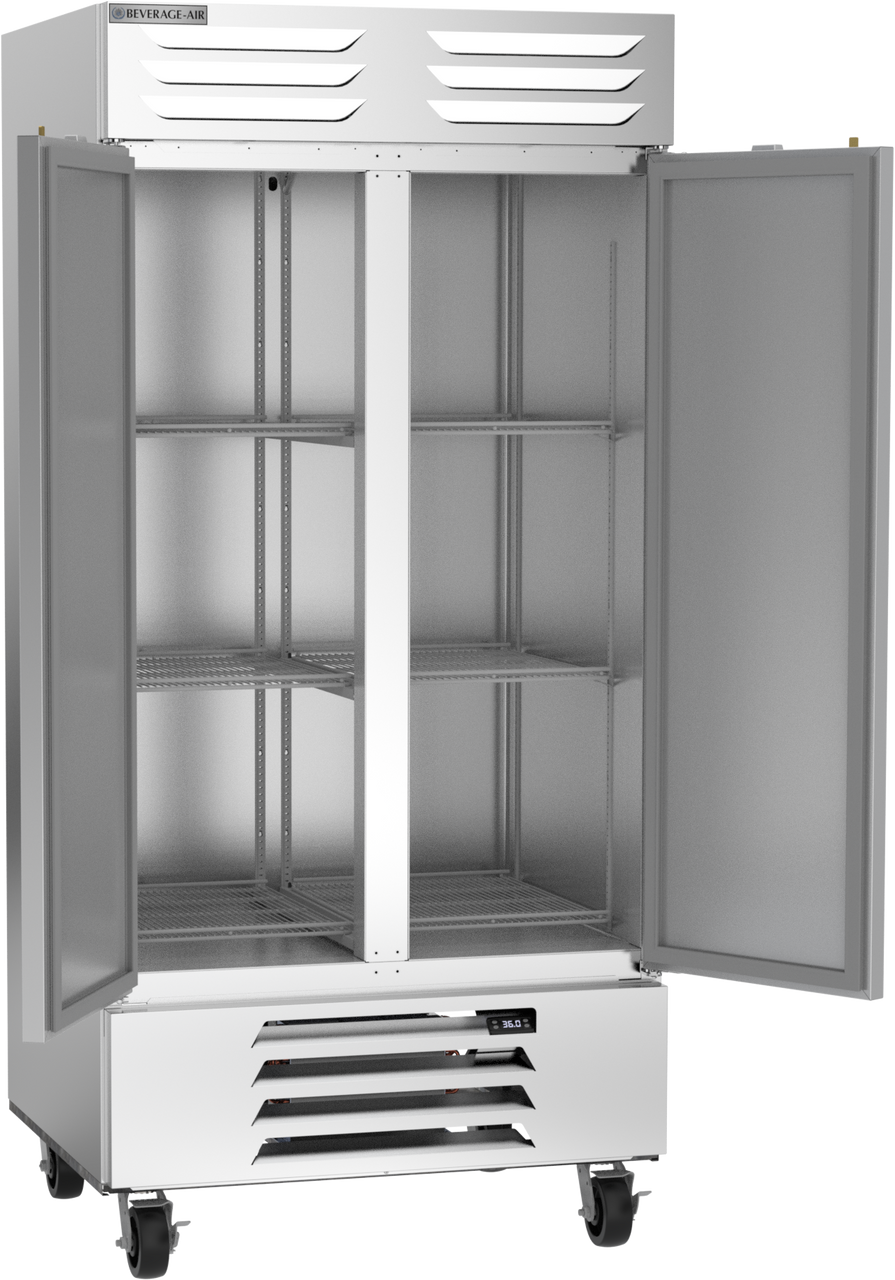

    • RB35HC-1S | Vista Series Solid Door Reach-In Refrigerator

    Call Us: 888-845-9800

    Spec Sheet Manual Revit File Front File Plan File Side File
    Write a Review
    Model #:
    RB35HC-1S
    Exterior Dimensions WxDxH:
    39-1/2" x 33-3/4" x 84"
    Ext. Construction:
    Stainless steel front and door, gray painted sides
    Int. Construction:
    Gray painted aluminum
    Doors:
    2
    Shelves:
    6
    Net Capacity:
    36.87 cu. ft.
    Compressor Location:
    Bottom mounted
    Door Type:
    Solid door
    ENERGY STAR Certified:
    Yes

    Product Description

    RB35HC-1S | Vista Series Solid Door Reach-In Refrigerator

    CABINET CONSTRUCTION

    • Stainless steel front and door, gray painted sides
    • Gray painted aluminum interior
    • Full electronic control
    • LED lighting
    • Self-closing door with 120º stay-open feature, on spring-loaded hinges
    • Door lock
    • One-piece grille allow easy removal/installation for preventative maintenance
    • Six (6) heavy duty epoxy coated wire shelves
    • 6” Casters with two (2) brakes

    REFRIGERATION SYSTEM

    • Uses environmentally friendly, energy efficient R290 refrigerant, and meets all regulatory requirements for CARB, SNAP, DOE & more
    • Adaptive defrost
    • Epoxy coated evaporator coil
    • Maintains product temperatures of 36º-38º F and below
  • Stainless steel universal tray (AC)
  • Epoxy shelves
  • Shelf clips
  • 3” Casters or 6” legs
  • 6" Flanged/seismic feet
  • Remote option

    • Resources

    Spec Sheet Manual Video File Brochure Revit File Auto CAD Front File Auto CAD Plan File Auto CAD Side File

    7 year warranty on parts, labor, and compressor

    Warranty Statement File

    Custom Field

    Model # RB35HC-1S
    Exterior Dimensions WxDxH 39-1/2" x 33-3/4" x 84"
    Ext. Construction Stainless steel front and door, gray painted sides
    Int. Construction Gray painted aluminum
    Doors 2
    Shelves 6
    Net Capacity 36.87 cu. ft.
    Compressor Location Bottom mounted
    Door Type Solid door
    ENERGY STAR Certified Yes
    Resource - PDF - Spec Sheet https://store-2tiw84ejdt.mybigcommerce.com/content/spec-sheets/Vista-Series/RB35HC-1S.pdf
    Resource - PDF - Manual https://store-2tiw84ejdt.mybigcommerce.com/content/manuals/809-146A_MANUAL_INSTALLATION_AND_OPERATION_BEV_AIR_RB.pdf
    Resource - Video https://player.vimeo.com/video/1004221345?badge=0
    Resource - PDF - Brochure https://beverage-air.com/content/brochures/Vista-Series.pdf
    Additional Information 7 year warranty on parts, labor, and compressor
    Resource - Warranty Statement https://store-2tiw84ejdt.mybigcommerce.com/content/warranty/Beverage-Air-Warranty-Statement.pdf
    Resource - Revit https://store-2tiw84ejdt.mybigcommerce.com/content/CAD-Revit/Vista-Series/QF_Beverage-Air_RB35HC-1S.rfa
    Resource - Auto CAD - Front https://store-2tiw84ejdt.mybigcommerce.com/content/CAD-Revit/Vista-Series/KCL-Beverage-Air-RB35HC-1S-VE.dwg
    Resource - Auto CAD - Plan https://store-2tiw84ejdt.mybigcommerce.com/content/CAD-Revit/Vista-Series/KCL-Beverage-Air-RB35HC-1S-VP.dwg
    Resource - Auto CAD - Side https://store-2tiw84ejdt.mybigcommerce.com/content/CAD-Revit/Vista-Series/KCL-Beverage-Air-RB35HC-1S-VS.dwg
