    • WTRD72AHC-6 | 72" Worktop Six Drawer Refrigerator

    Call Us: 888-845-9800

    Spec Sheet Manual Revit File Front File Plan File Side File
    Write a Review
    Model #:
    WTRD72AHC-6
    Exterior Dimensions WxDxH:
    72" x 32" x 39-5/8"
    Ext. Construction:
    Stainless steel front and sides
    Int. Construction:
    Corrosion resistant aluminum
    Net Capacity:
    17.88 cu. ft.
    Door Type:
    Drawers
    Type:
    Refrigerators
    Compressor Location:
    Rear mounted

    Product Description

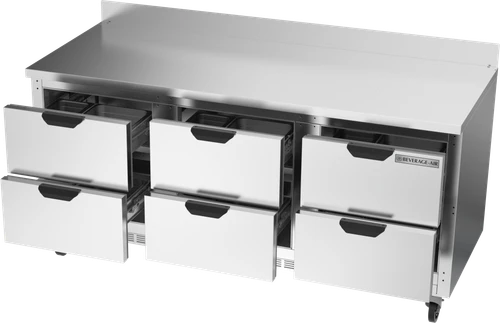

    WTRD72AHC-6 | 72" Worktop Six Drawer Refrigerator

    CABINET CONSTRUCTION

    • Stainless steel front, sides, door and drawers (galvanized back & bottom)
    • Interior liner is made of corrosion resistant aluminum
    • Stainless steel worktop for added durability
    • Full electronic control
    • Interior thermometer is standard
    • Snap-in drawer gaskets
    • Upper and lower pull-out drawers accommodate 6” deep pans
    • Stainless steel drawer frames supported on telescoping drawer slides
    • Drawer slides include locking mechanism that prevents drawer from being inadvertently pulled off cabinet
    • 6” Casters, two (2) with brakes standard

    REFRIGERATION SYSTEM

    • Uses environmentally friendly, energy efficient R290 refrigerant, and meets all regulatory requirements for CARB, SNAP, DOE & more
    • Adaptive defrost
    • Epoxy coated evaporator coil
    • Refrigerators capable of maintaining product temperature between 36ºF and 38ºF
  • Stainless steel back
  • Stainless steel interior
  • 16 Gauge stainless steel top
  • Cutting board
  • 3” Casters
  • 6” Legs (stainless steel, black or seismic/flange)
  • Low profile casters
  • Roller kit
  • Remote option

    • Resources

    Spec Sheet Manual Video File Revit File Auto CAD Front File Auto CAD Plan File Auto CAD Side File

    7 year warranty on parts, labor, and compressor

    Warranty Statement File

    Custom Field

    Model # WTRD72AHC-6
    Exterior Dimensions WxDxH 72" x 32" x 39-5/8"
    Ext. Construction Stainless steel front and sides
    Int. Construction Corrosion resistant aluminum
    Net Capacity 17.88 cu. ft.
    Door Type Drawers
    Type Refrigerators
    Nominal Width 67 - 119 in
    Compressor Location Rear mounted
    Resource - PDF - Spec Sheet https://store-2tiw84ejdt.mybigcommerce.com/content/spec-sheets/Worktops/WTRD72AHC-6.pdf
    Resource - PDF - Manual https://store-2tiw84ejdt.mybigcommerce.com/content/manuals/809-170A_MANUAL_INSTALLATION_AND_OPERATION_BEV_AIR_WTR.pdf
    Resource - Video https://player.vimeo.com/video/1004221317?badge=0
    Additional Information 7 year warranty on parts, labor, and compressor
    Resource - Warranty Statement https://store-2tiw84ejdt.mybigcommerce.com/content/warranty/Beverage-Air-Warranty-Statement.pdf
    Resource - Revit https://store-2tiw84ejdt.mybigcommerce.com/content/CAD-Revit/Worktops/QF_Beverage-Air_WTRD72AHC-6.rfa
    Resource - Auto CAD - Front https://store-2tiw84ejdt.mybigcommerce.com/content/CAD-Revit/Worktops/KCL-Beverage-Air-WTRD72AHC-6-VE.dwg
    Resource - Auto CAD - Plan https://store-2tiw84ejdt.mybigcommerce.com/content/CAD-Revit/Worktops/KCL-Beverage-Air-WTRD72AHC-6-VP.dwg
    Resource - Auto CAD - Side https://store-2tiw84ejdt.mybigcommerce.com/content/CAD-Revit/Worktops/KCL-Beverage-Air-WTRD72AHC-6-VS.dwg
