    • UCR27HC | 27" Undercounter One Door Refrigerator Shallow Depth

    Call Us: 888-845-9800

    Spec Sheet Manual Revit File Front File Plan File Side File
    Write a Review
    Model #:
    UCR27HC
    Exterior Dimensions WxDxH:
    27" x 29-7/8" x 34-5/8"
    Ext. Construction:
    Stainless steel front and sides
    Int. Construction:
    Corrosion resistant aluminum
    Doors:
    1
    Shelves:
    2
    Net Capacity:
    5.25 cu. ft.
    Door Type:
    Doors
    Type:
    Refrigerators
    Compressor Location:
    Rear mounted
    ENERGY STAR Certified:
    Yes

    Product Description

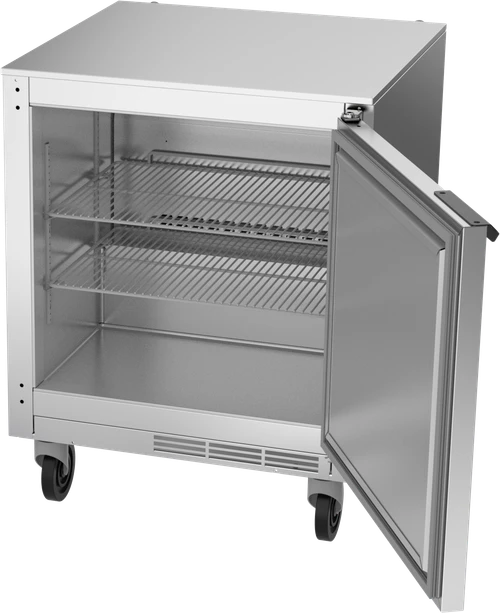

    UCR27HC | 27" Undercounter One Door Refrigerator Shallow Depth

    CABINET CONSTRUCTION

    • Stainless steel front, sides, top, door and grille (galvanized back & bottom)
    • Interior liner is made of corrosion resistant aluminum
    • Undercounter feature a 1/2” thick sub-top
    • Full electronic control
    • Interior thermometer is standard
    • Self-closing doors with 120º stay-open feature
    • Magnetic gasket attached to each door for positive seal
    • 6” Casters, two (2) with brakes standard
    • Two (2) epoxy-coated steel wire shelves per door section
    • Field-reversible door (hinge kit not included)

    REFRIGERATION SYSTEM

    • Uses environmentally friendly, energy efficient R290 refrigerant, and meets all regulatory requirements for CARB, SNAP, DOE & more
    • Adaptive defrost
    • Epoxy coated evaporator coil
    • Refrigerators capable of maintaining product temperature between 36ºF and 38ºF
  • Stainless steel back
  • Stainless steel interior
  • Additional shelves
  • Shelf clips
  • Glass door option
  • Right or left hinged door
  • Lock
  • Wire shelf divider
  • 3” Casters
  • 6” legs (stainless steel, black or seismic/flange)
  • Low profile casters
  • Roller kit
  • Remote option

    • Resources

    Spec Sheet Manual Video File Revit File Auto CAD Front File Auto CAD Plan File Auto CAD Side File

    7 year warranty on parts, labor, and compressor

    Warranty Statement File

    Custom Field

    Model # UCR27HC
    Exterior Dimensions WxDxH 27" x 29-7/8" x 34-5/8"
    Ext. Construction Stainless steel front and sides
    Int. Construction Corrosion resistant aluminum
    Doors 1
    Shelves 2
    Net Capacity 5.25 cu. ft.
    Door Type Doors
    Type Refrigerators
    Nominal Width 20 - 32 in
    Compressor Location Rear mounted
    ENERGY STAR Certified Yes
    Resource - PDF - Spec Sheet https://store-2tiw84ejdt.mybigcommerce.com/content/spec-sheets/Undercounters/UCR27HC.pdf
    Resource - PDF - Manual https://store-2tiw84ejdt.mybigcommerce.com/content/manuals/809-173A_MANUAL_INSTALLATION_AND_OPERATION_BEV_AIR_UCR.pdf
    Resource - Video https://player.vimeo.com/video/1004221317?badge=0
    Additional Information 7 year warranty on parts, labor, and compressor
    Resource - Warranty Statement https://store-2tiw84ejdt.mybigcommerce.com/content/warranty/Beverage-Air-Warranty-Statement.pdf
    Resource - Revit https://store-2tiw84ejdt.mybigcommerce.com/content/CAD-Revit/Undercounters/QF_Beverage-Air_UCR27HC.rfa
    Resource - Auto CAD - Front https://store-2tiw84ejdt.mybigcommerce.com/content/CAD-Revit/Undercounters/KCL-Beverage-Air-UCR27HC-VE.dwg
    Resource - Auto CAD - Plan https://store-2tiw84ejdt.mybigcommerce.com/content/CAD-Revit/Undercounters/KCL-Beverage-Air-UCR27HC-VP.dwg
    Resource - Auto CAD - Side https://store-2tiw84ejdt.mybigcommerce.com/content/CAD-Revit/Undercounters/KCL-Beverage-Air-UCR27HC-VS.dwg
