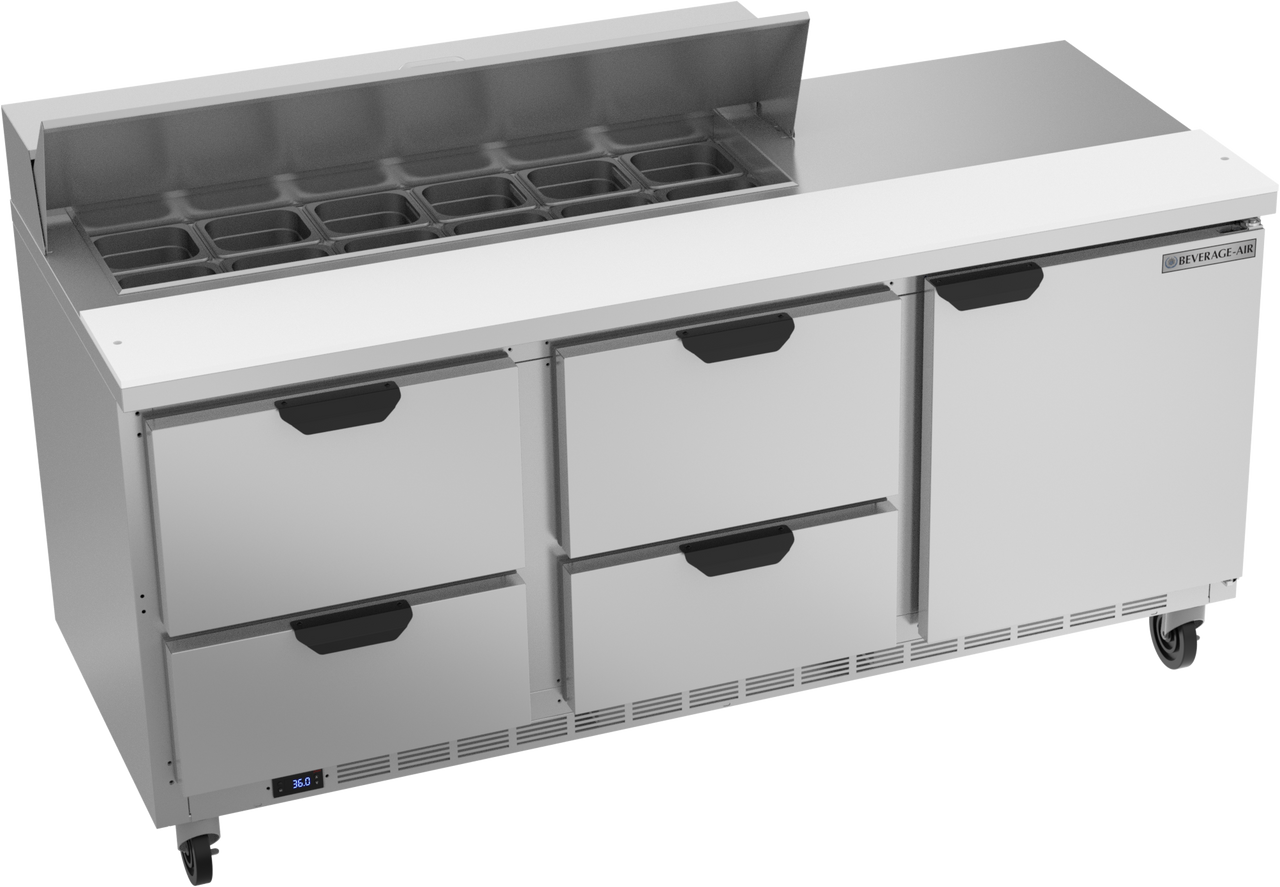

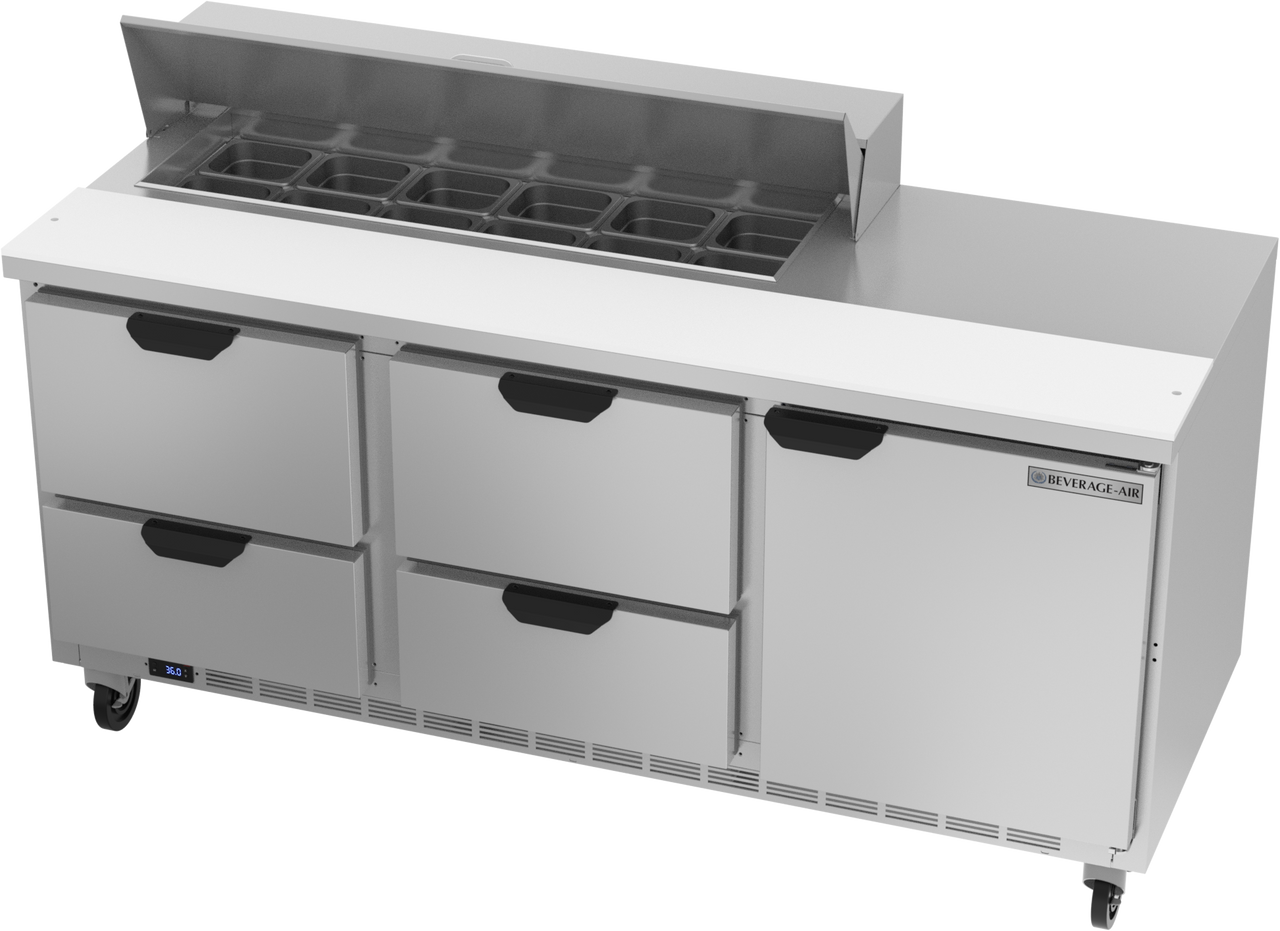

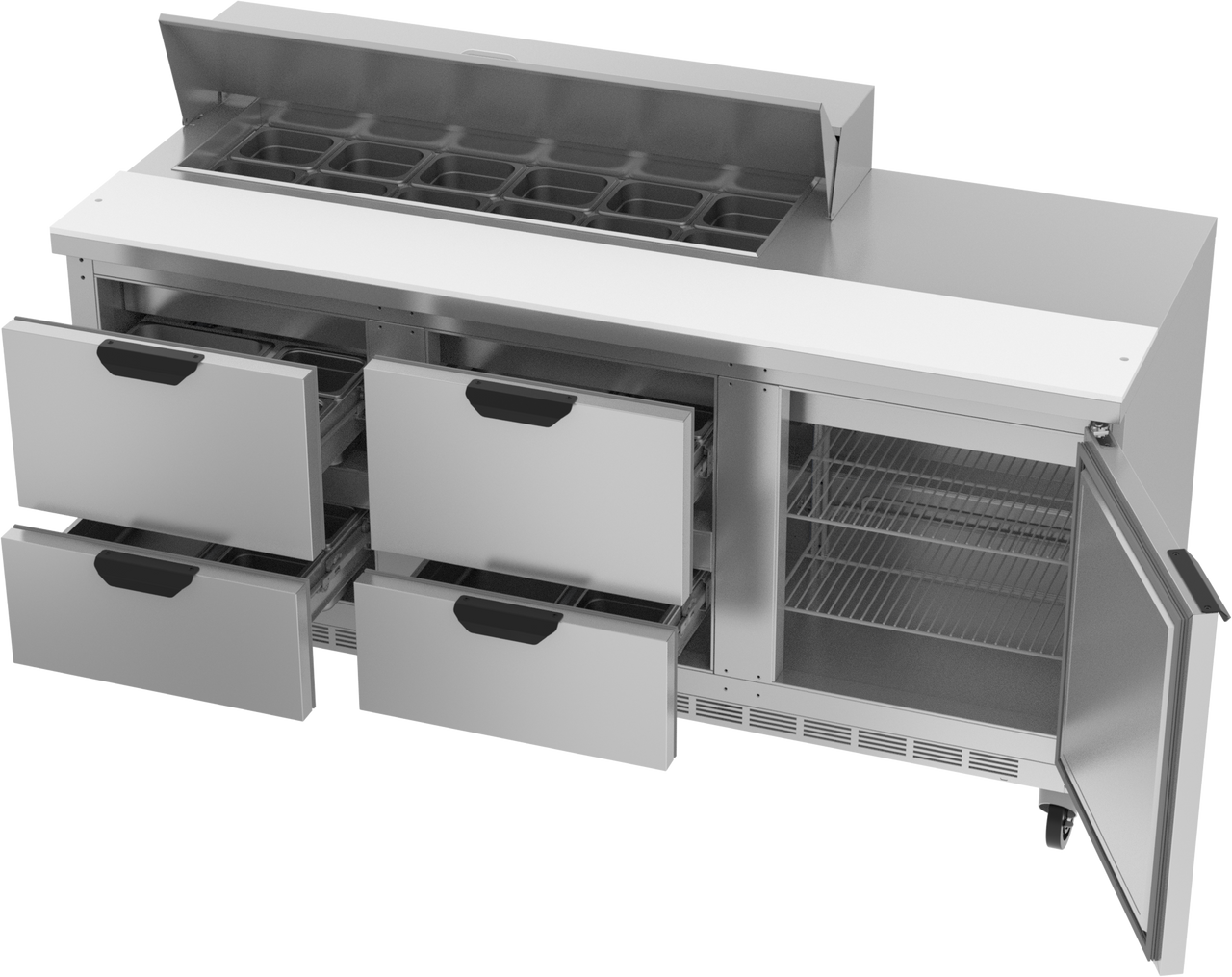

    • SPED72HC-12-4 | 72" Sandwich Prep Table Four Drawers One Door Standard Top

    Call Us: 888-845-9800

    Spec Sheet Manual Revit File Front File Plan File Side File
    Write a Review
    Model #:
    SPED72HC-12-4
    Exterior Dimensions WxDxH:
    72" x 32" x 45-1/8"
    Ext. Construction:
    Stainless steel with galavanized back & bottom
    Int. Construction:
    Corrosion resistant aluminium
    Doors:
    1
    Shelves:
    2
    Drawers:
    4
    Net Capacity:
    20.02 cu. ft.
    Compressor Location:
    Rear mounted
    Access Type:
    Doors and Drawers
    Pan Capacity:
    (12) 1/6 size
    Top Type:
    Standard top

    Product Description

    SPED72HC-12-4 | 72" Sandwich Prep Table Four Drawers One Door Standard Top

    CABINET CONSTRUCTION

    • Stainless steel front, sides, top, drawer and grille (galvanized back & bottom)
    • Interior liner is made of corrosion resistant aluminum
    • Removable hoods made of matching stainless steel
    • Airflow assures that product in open containers is kept below 41°F and above freezing
    • Self-closing doors on cartridge style hinges, 120º stay-open door feature
    • Easy door removal for service and cleaning
    • Field-reversible doors (hinge kit not included)
    • Snap-in magnetic gaskets for positive door & drawer seal
    • 10" Wide cutting board constructed of white polyethylene plastic
    • Cutting board removable for cleaning
    • Two (2) epoxy-coated steel wire shelves per section standard
    • Twelve (12) 1/6 4" deep pans constructed of polycarbonate plastic
    • Pans furnished are 4" deep constructed of polycarbonate plastic
    • Stainless steel drawer frames supported on telescoping drawer slides
    • Drawer slides include locking mechanism that prevents drawers from being inadvertently pulled off cabinet
    • 6" Casters, with 2 brakes standard

    REFRIGERATION SYSTEM

    • Uses environmentally friendly, energy efficient R290 refrigerant, and meets all regulatory requirements for CARB, SNAP, DOE & more
    • Adaptive defrost
    • Epoxy coated evaporator coil
    • Maintains product temperatures between 36º - 38ºF
  • Stainless steel back
  • Stainless steel interior
  • Clear lid
  • Overshelves (single or double)
  • Crumb catcher kit
  • Richlite cutting board
  • Night cover
  • Bottle organizer
  • Bun rack
  • Epoxy coated shelves
  • Shelf clips
  • Shelf dividers
  • Pan supports
  • Pan support crossbar
  • Pan configuration
  • 6” legs or 3” casters
  • Low profile casters
  • Remote option

    • Resources

    Spec Sheet Manual Video File Revit File Auto CAD Front File Auto CAD Plan File Auto CAD Side File

    7 year warranty on parts, labor, and compressor

    Warranty Statement File

    Model #

    Model # SPED72HC-12-4
    Exterior Dimensions WxDxH 72" x 32" x 45-1/8"
    Ext. Construction Stainless steel with galavanized back & bottom
    Int. Construction Corrosion resistant aluminium
    Doors 1
    Shelves 2
    Drawers 4
    Net Capacity 20.02 cu. ft.
    Compressor Location Rear mounted
    Access Type Doors and Drawers
    Pan Capacity (12) 1/6 size
    Nominal Width 60 - 72 in
    Top Type Standard top
    Resource - PDF - Spec Sheet https://store-2tiw84ejdt.mybigcommerce.com/content/spec-sheets/Sandwich-Prep/SPED72HC-12-4.pdf
    Resource - PDF - Manual https://store-2tiw84ejdt.mybigcommerce.com/content/manuals/809-168A_MANUAL_INSTALLATION_AND_OPERATION_BEV_AIR_SPE.pdf
    Resource - Video https://player.vimeo.com/video/1004221251?badge=0
    Additional Information 7 year warranty on parts, labor, and compressor
    Resource - Warranty Statement https://store-2tiw84ejdt.mybigcommerce.com/content/warranty/Beverage-Air-Warranty-Statement.pdf
    Resource - Revit https://store-2tiw84ejdt.mybigcommerce.com/content/CAD-Revit/Sandwich-Prep/QF_Beverage-Air_SPED72HC-12-4.rfa
    Resource - Auto CAD - Front https://store-2tiw84ejdt.mybigcommerce.com/content/CAD-Revit/Sandwich-Prep/KCL-Beverage-Air-SPED72HC-12-4-VE.dwg
    Resource - Auto CAD - Plan https://store-2tiw84ejdt.mybigcommerce.com/content/CAD-Revit/Sandwich-Prep/KCL-Beverage-Air-SPED72HC-12-4-VP.dwg
    Resource - Auto CAD - Side https://store-2tiw84ejdt.mybigcommerce.com/content/CAD-Revit/Sandwich-Prep/KCL-Beverage-Air-SPED72HC-12-4-VS.dwg
