    • PFD2HC-1BG | P Series Glass Door Pass-Thru Freezer

    Call Us: 888-845-9800

    Spec Sheet Manual Revit File Front File Plan File Side File
    Write a Review
    Model #:
    PFD2HC-1BG
    Exterior Dimensions WxDxH:
    52-1/8" x 35-7/8" x 84-1/8"
    Ext. Construction:
    Stainless steel front and sides
    Int. Construction:
    Corrosion resistant aluminum
    Doors:
    4
    Shelves:
    6
    Net Capacity:
    48.33 cu. ft.
    Hinge Location:
    Left/Right
    Compressor Location:
    Top mounted
    Door Type:
    Glass door Pass-thru
    Type:
    Freezers

    Product Description

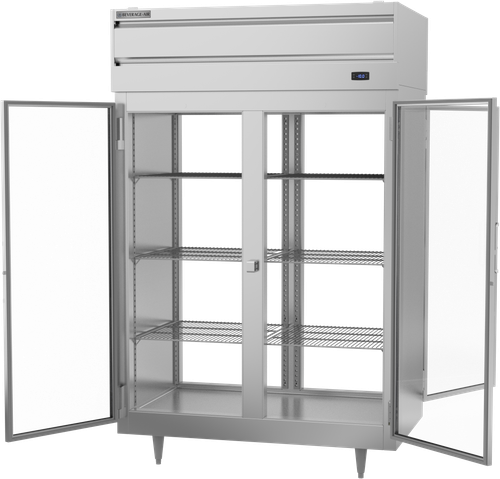

    PFD2HC-1BG | P Series Glass Door Pass-Thru Freezer

    CABINET CONSTRUCTION

    • Stainless steel front and sides (galvanized top, bottom & back)
    • Interior is made of corrosion resistant aluminum
    • Full electronic control
    • Expansion valve technology
    • Variable speed compressor technology
    • Self-closing door with 120º stay-open feature
    • Glass pass-thru doors
    • LED interior light
    • Cylinder lock
    • Snap-in magnetic gaskets for positive door seal
    • Low profile vertical door handles
    • Hinged front shroud
    • Energy saving thermal breaker
    • Stainless steel breaker caps
    • Six (6) heavy duty epoxy coated wire shelves
    • 6" High adjustable stainless steel legs
    • 8' Cord and plug (see electrical data for details)

    REFRIGERATION SYSTEM

    • Uses environmentally friendly, energy efficient R290 refrigerant, and meets all regulatory requirements for CARB, SNAP, DOE & more
    • Adaptive defrost
    • Epoxy coated evaporator coil, located out of the food zone
    • Freezer capable of maintaining product temperature down to -10ºF
  • Stainless steel interior
  • Additional shelves
  • Shelf clips
  • 3" or 6" casters
  • 6" Seismic legs
  • Tray slides (type A and A/C)
  • Door swing orientation (at time of order)
  • Remote option

    • Resources

    Spec Sheet Manual Video File Revit File Auto CAD Front File Auto CAD Plan File Auto CAD Side File

    7 year warranty on parts, labor, and compressor

    Warranty Statement File

    Custom Field

    Model # PFD2HC-1BG
    Exterior Dimensions WxDxH 52-1/8" x 35-7/8" x 84-1/8"
    Ext. Construction Stainless steel front and sides
    Int. Construction Corrosion resistant aluminum
    Doors 4
    Shelves 6
    Net Capacity 48.33 cu. ft.
    Hinge Location Left/Right
    Compressor Location Top mounted
    Door Type Glass door Pass-thru
    Type Freezers
    Resource - PDF - Spec Sheet https://store-2tiw84ejdt.mybigcommerce.com/content/spec-sheets/P-Series/PFD2HC-1BG.pdf
    Resource - PDF - Manual https://store-2tiw84ejdt.mybigcommerce.com/content/manuals/809-214A_MANUAL_INSTALLATION_AND_OPERATION_BEV_AIR_PFI_PFD_ AND_PFT.pdf
    Resource - Video https://player.vimeo.com/video/1004221127?badge=0
    Additional Information 7 year warranty on parts, labor, and compressor
    Resource - Warranty Statement https://store-2tiw84ejdt.mybigcommerce.com/content/warranty/Beverage-Air-Warranty-Statement.pdf
    Resource - Revit https://store-2tiw84ejdt.mybigcommerce.com/content/CAD-Revit/P-Series/QF_Beverage-Air_PFD2HC-1BG.rfa
    Resource - Auto CAD - Front https://store-2tiw84ejdt.mybigcommerce.com/content/CAD-Revit/P-Series/KCL-Beverage-Air-PFD2HC-1BG-VE.dwg
    Resource - Auto CAD - Plan https://store-2tiw84ejdt.mybigcommerce.com/content/CAD-Revit/P-Series/KCL-Beverage-Air-PFD2HC-1BG-VP.dwg
    Resource - Auto CAD - Side https://store-2tiw84ejdt.mybigcommerce.com/content/CAD-Revit/P-Series/KCL-Beverage-Air-PFD2HC-1BG-VS.dwg
