    • HFS2HC-1HS | Horizon Top Mount Half Solid Door Reach-In Freezer

    Call Us: 888-845-9800

    Spec Sheet Manual Revit File Front File Plan File Side File
    Write a Review
    Model #:
    HFS2HC-1HS
    Exterior Dimensions WxDxH:
    52" x 33-5/8" x 85"
    Ext. Construction:
    Stainless steel front with continuous coil coated sides
    Int. Construction:
    Stainless steel
    Doors:
    4
    Shelves:
    6
    Net Capacity:
    45.2 cu. ft.
    Hinge Location:
    Left/Right
    Compressor Location:
    Top mounted
    Door Type:
    Half-solid door
    Type:
    Freezers
    ENERGY STAR Certified:
    Yes

    Product Description

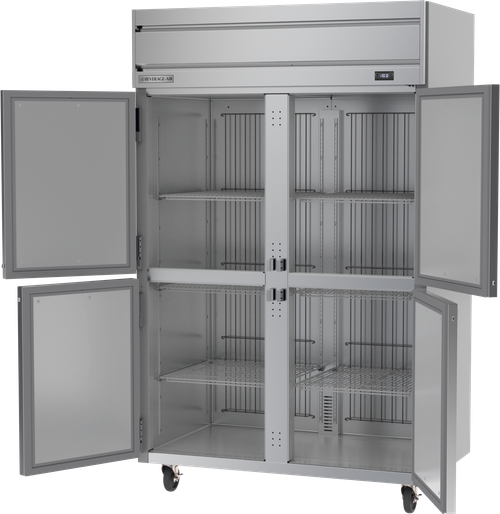

    HFS2HC-1HS | Horizon Top Mount Half Solid Door Reach-In Freezer

    CABINET CONSTRUCTION

    • Exterior is stainless steel front and continuous coil coated sides
    • Interior liner is made of stainless steel
    • Full electronic control
    • One piece grille
    • LED interior light
    • Self-closing door with 120º stay-open feature, on cam-lift hinges
    • Field reversible doors
    • Door locks
    • Snap-In magnetic gaskets for positive door seal
    • Six (6) heavy-duty epoxy coated wire shelves
    • 6” Heavy-duty casters, two (2) with brakes
    • 8’ Cord and plug (see electrical data for details)

    REFRIGERATION SYSTEM

    • Uses environmentally friendly, energy efficient R290 refrigerant, and meets all regulatory requirements for CARB, SNAP, DOE & more
    • Hot gas condensate evaporator
    • Adaptive defrost
    • Epoxy coated evaporator coil
    • Freezer capable of maintaining product temperatures down to -10°F
  • Tray slide pair, 1 tray slide set for (1) 18” x 26” or (2) 14” x 18” pans (A)
  • Stainless steel universal tray slide pair,1 tray slide set for (1) 18” x 26” or (2) 14” x 18” pans (AC)
  • Tray slide kit #4 (19 sets per half section)
  • Additional epoxy shelves
  • Shelf clips
  • Stainless steel breaker
  • 6” Legs seismic/flanged
  • 3” Casters
  • Remote option

    • Resources

    Spec Sheet Manual Video File Revit File Auto CAD Front File Auto CAD Plan File Auto CAD Side File

    7 year warranty on parts, labor, and compressor

    Warranty Statement File

    Custom Field

    Model # HFS2HC-1HS
    Exterior Dimensions WxDxH 52" x 33-5/8" x 85"
    Ext. Construction Stainless steel front with continuous coil coated sides
    Int. Construction Stainless steel
    Doors 4
    Shelves 6
    Net Capacity 45.2 cu. ft.
    Hinge Location Left/Right
    Compressor Location Top mounted
    Door Type Half-solid door
    Type Freezers
    ENERGY STAR Certified Yes
    Resource - PDF - Spec Sheet https://store-2tiw84ejdt.mybigcommerce.com/content/spec-sheets/Horizon-Top-Mount/HFS2HC-1HS.pdf
    Resource - PDF - Manual https://store-2tiw84ejdt.mybigcommerce.com/content/manuals/809-143A_MANUAL_INSTALLATION_AND_OPERATION_BEV_AIR_HF.pdf
    Resource - Video https://player.vimeo.com/video/1004221033?badge=0
    Additional Information 7 year warranty on parts, labor, and compressor
    Resource - Warranty Statement https://store-2tiw84ejdt.mybigcommerce.com/content/warranty/Beverage-Air-Warranty-Statement.pdf
    Resource - Revit https://store-2tiw84ejdt.mybigcommerce.com/content/CAD-Revit/Horizon-Series/QF_Beverage-Air_HFS2HC-1HS.rfa
    Resource - Auto CAD - Front https://store-2tiw84ejdt.mybigcommerce.com/content/CAD-Revit/Horizon-Series/KCL-Beverage-Air-HFS2HC-1HS-VE.dwg
    Resource - Auto CAD - Plan https://store-2tiw84ejdt.mybigcommerce.com/content/CAD-Revit/Horizon-Series/KCL-Beverage-Air-HFS2HC-1HS-VP.dwg
    Resource - Auto CAD - Side https://store-2tiw84ejdt.mybigcommerce.com/content/CAD-Revit/Horizon-Series/KCL-Beverage-Air-HFS2HC-1HS-VS.dwg
