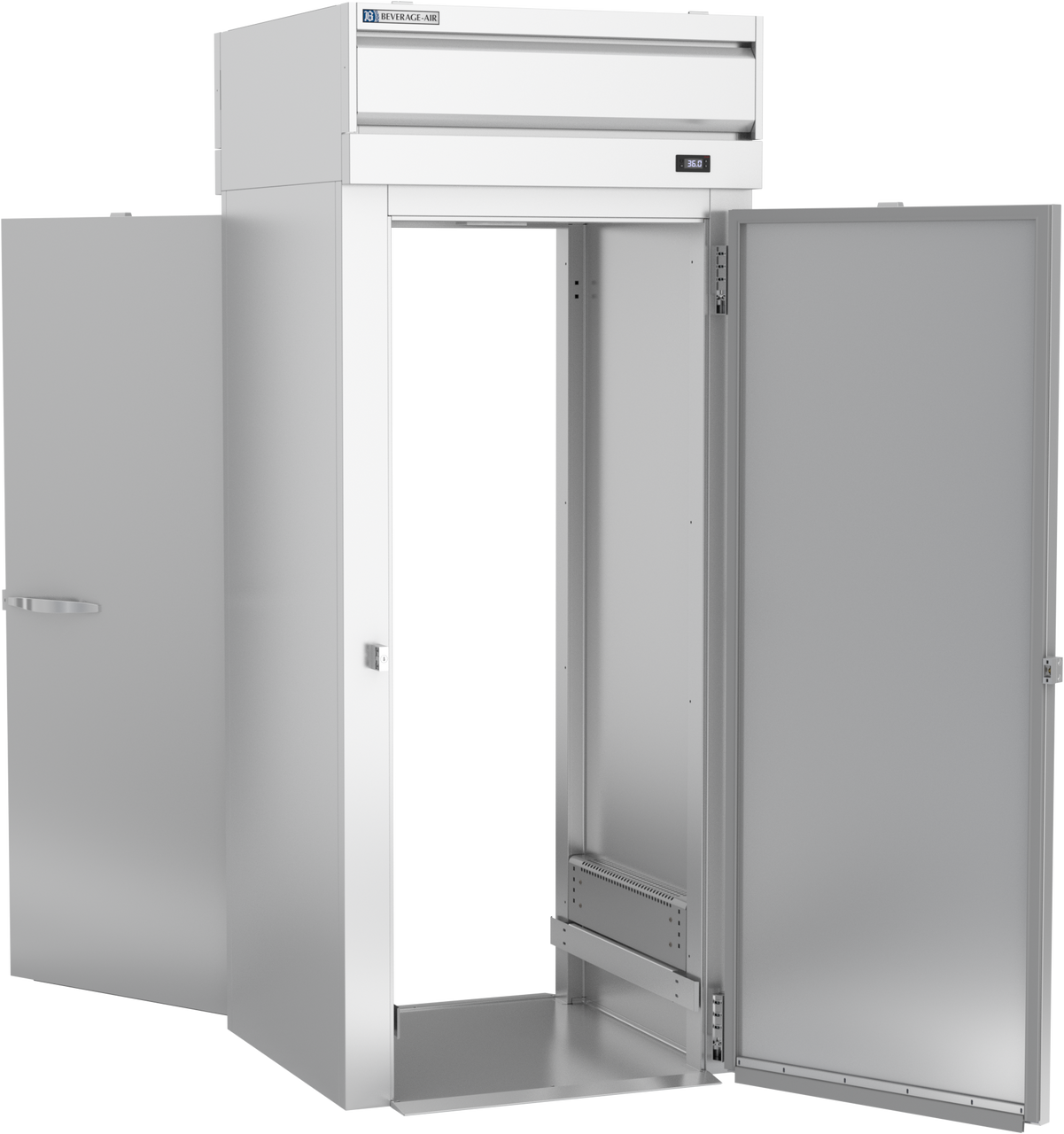

PHI1XT-1S-PT | P Series Solid Door Extra Tall Pass-Thru Warming Cabinet

Call Us: 888-845-9800

Model #:

PHI1XT-1S-PT

Exterior Dimensions WxDxH:

36-3/8" x 39-7/8" x 90"

Ext. Construction:

Stainless steel front and sides

Int. Construction:

Corrosion resistant aluminum

Doors:

Net Capacity:

42.74 cu. ft.

Hinge Location:

Right

Compressor Location:

Top mounted

Door Type:

Solid door Pass-thru

Type:

Warming Cabinets

CABINET CONSTRUCTION

Exterior is stainless steel front, back, side and top grille (galvanized top, bottom)
Interior is made of corrosion resistant aluminum
Stainless steel interior door liner
Stainless steel breaker caps
Full electronic control
22 Gauge stainless steel door
Adjustable electronic temp control from 80°F to 180°F
Built-in, adjustable humidity control vent
Safety shield strip type heating elements
External mounted blower maintains even temperatures
Accepts Cart: 26 1/2” (W) x 28” (D) x 71 1/2” (H) (cart not included)
Heavy-duty cylinder lock
Self-closing door with 120° hold open feature, with cam-lift hinges
One-piece, snap-in magnetic door gasket with wiper gasket
Hinged front shroud
Proximity door switch activates interior incandescent lighting
8’ Cord and plug (see electrical data for details)

ELECTRICAL SYSTEM

30 AMP breaker required for single door units
Strip type 750-watt heating elements, operating on 208-240/60/1, having a total of 1500 watts per compartment
Externally mounted blower system maintains even temperature through out the food zone area

Left or right door hinge (at time of order)

Stainless steel interior
